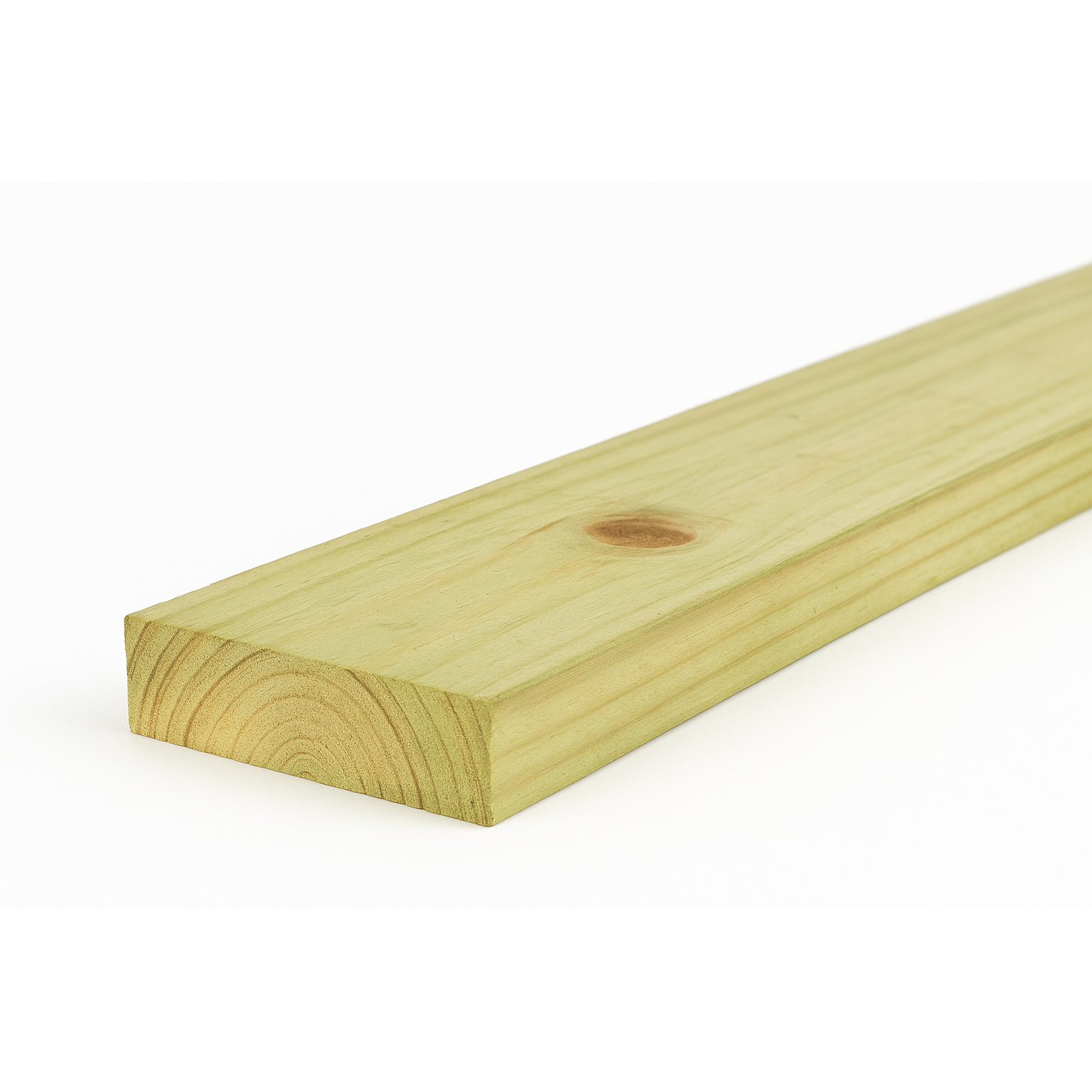

H3 CCA F7 Treated Pine – Structural Sub-Frame Timber

This kiln dried, structurally graded softwood is purpose designed for sub-frame applications such as joists, bearers, plinths and pergola beams where long term strength and durability outdoors are essential.

What “H3 – CCA F7” Means

• H3 Hazard Class – treated for above ground exterior use where timber is exposed to the weather but can dry out between wetting cycles. Ideal for decks, verandas and garden structures.

• CCA Treatment (Copper Chrome Arsenate) – preservative salts penetrate the wood cells, protecting against fungal decay, rot, termites and other borers for decades of service life.

• F7 Structural Grade – is a commonly specified stress grade that delivers sufficient bending strength and stiffness for residential decking frames and light structural work.

Key Benefits Of H3 – CCA F7 Treated Pine

• Long-lasting resistance to moisture, insects and decay

• Stable, kiln dried sections minimise movement and twisting

• Lightweight and easy to cut, nail and screw

• Fully compliant with Australian Standards for outdoor structural timber

• Sustainably sourced plantation pine

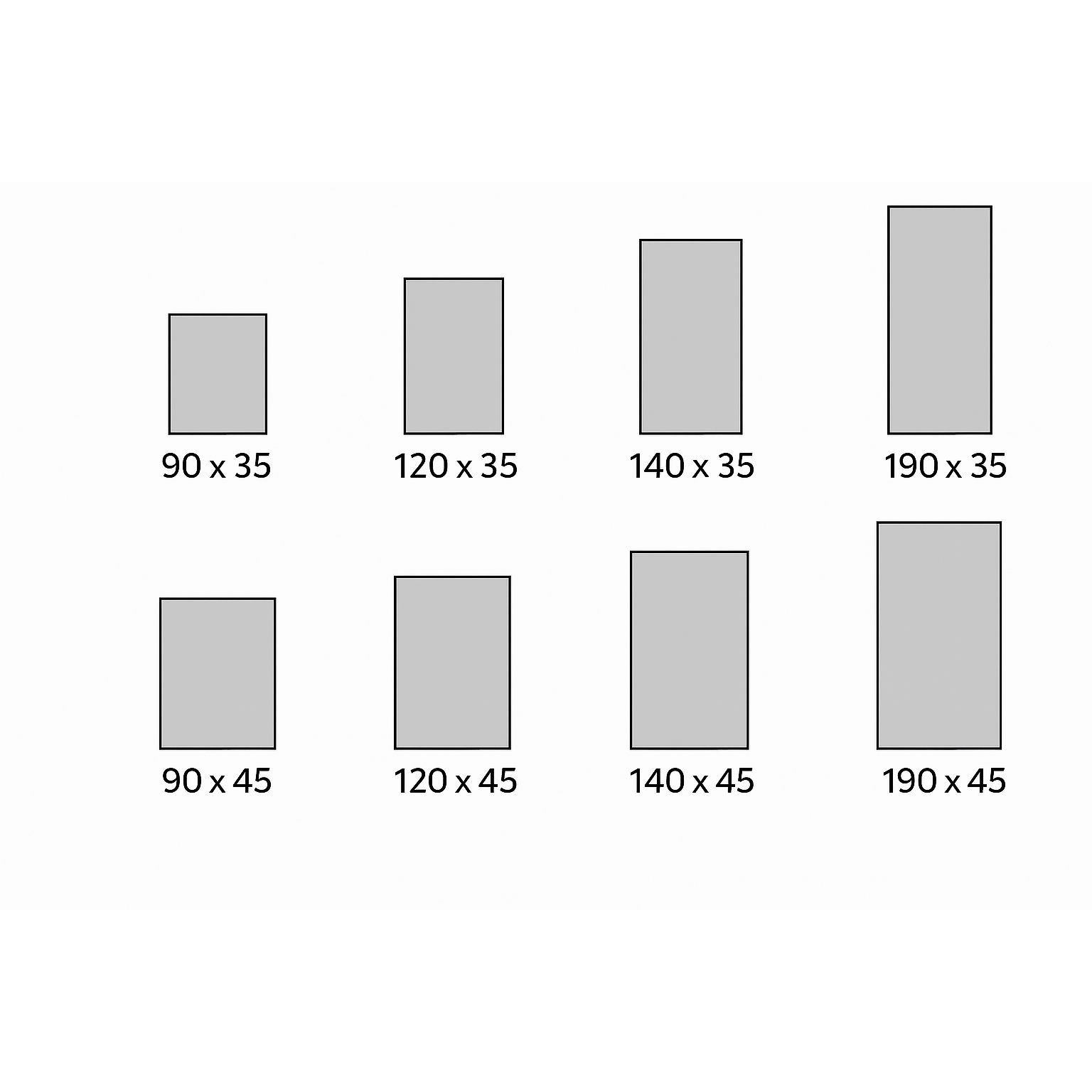

Stocked Sizes (mm)

• 35 mm thick:  90×35, 120×35, 140×35, 190×35

• 45 mm thick:  90×45, 120×45, 140×45, 190×45

Standard Lengths

3.6 m, 4.2 m, 4.8 m, 5.4 m and 6.0 m

Typical uses

Decking joists • Bearers • Stair stringers • Pergola rafters • Outdoor screens • Light framing where weather exposure is expected
