Eva-Last® VistaClad Clip Strip

The VistaClad Clip Strip is the concealed fix mounting rail for the VistaClad system from Eva-Last. The clip strip fastens to timber or metal battens so boards snap neatly into place without any face fixings. The clip strip speeds installation, keeps board spacing consistent, supports vertical or horizontal layouts, and preserves a ventilated  cavity for long lasting durability. The clip is made from epoxy coated galvanised steel.

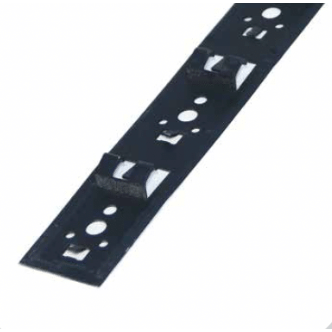

Flat Clip Strip:

The Flat Clip Strip is fixed directly to the wall or frame. As a result, this option provides less ventilation/drainage. Fixing can only be done through the face of the strip.

Dimensions: 40mm x 11.7mm x 1.8m lengths

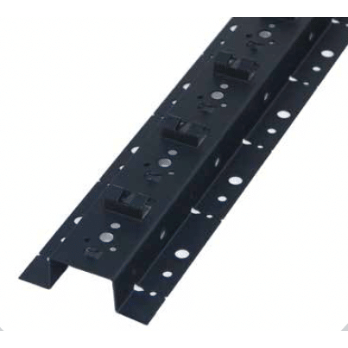

Top Hat Clip Strip:

The Top Hat Clip Strip is designed to sit on  top of a 38mm timber or 40mm composite or steel support. The ventilation cavity size will be influenced by the thickness of the support. Fixing can be done through the face or the sides of the clip.

Dimensions: 85.4mm x 35.9mm x 2.7m lengths

For more information, see the PDF downloadable cladding guides below.
