Castellation Composite Cladding 25mm

Give walls, ceilings and façades a modern timber look with the low maintenance composite castellation cladding from NewTechWood. Castellation boards feature a deep ribbed profile that creates elegant shadow lines, while UltraShield® capping protects against UV, salt spray, stains and pests. Built from 95 % recycled wood fibre and HDPE, the boards install with hidden clips, ventilate naturally, and never need paint or oil. The 25-year residential warranty means you can enjoy piece of mind in every outdoor space.

Why Castellation Stands Out

• Distinct 25mm ribs deliver modern architectural shadow lines.

• UltraShield 360° capping resists fade, stains, mould and termites.

• Concealed fix clip system for faster, cleaner DIY installation.

•  Made from 95% recycled materials keeps waste out of landfill.

Fast Facts & Technical Specs

• Board size: 196 mm W × 25 mm D x  5.4 m L (186mm effective coverage)

• Recommended batten spacing: 500 mm centres for residential, 400 mm for commercial applications.

• Weight: ≈ 2.7 kg / lm

• Rear ventilation gap:  25mm to reduce moisture damage

• 25 year residential warranty for long-term confidence.

Perfect For

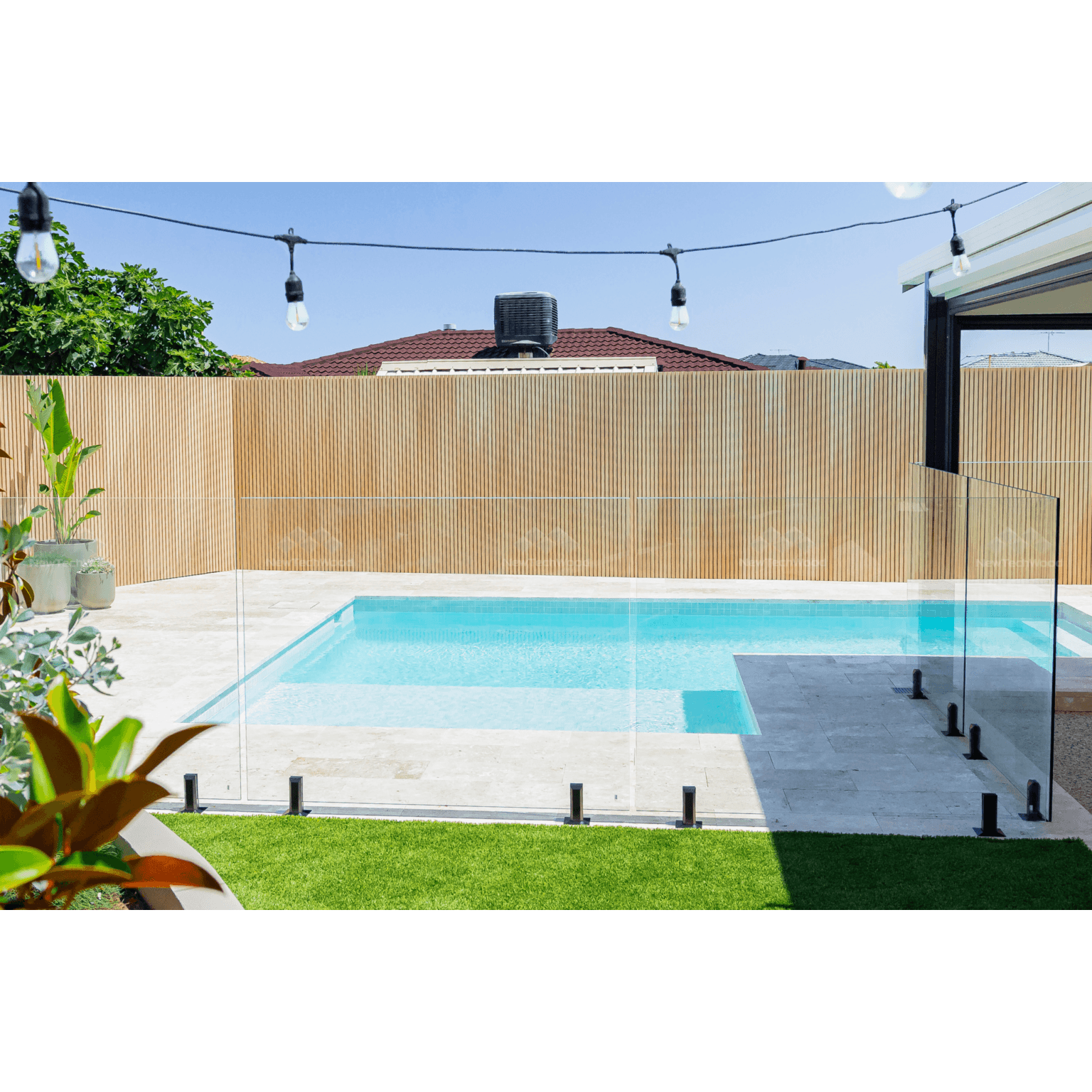

Feature Walls • Beach houses • Privacy Screens• Ceiling Cladding • Hospitality fit-outs

Colours

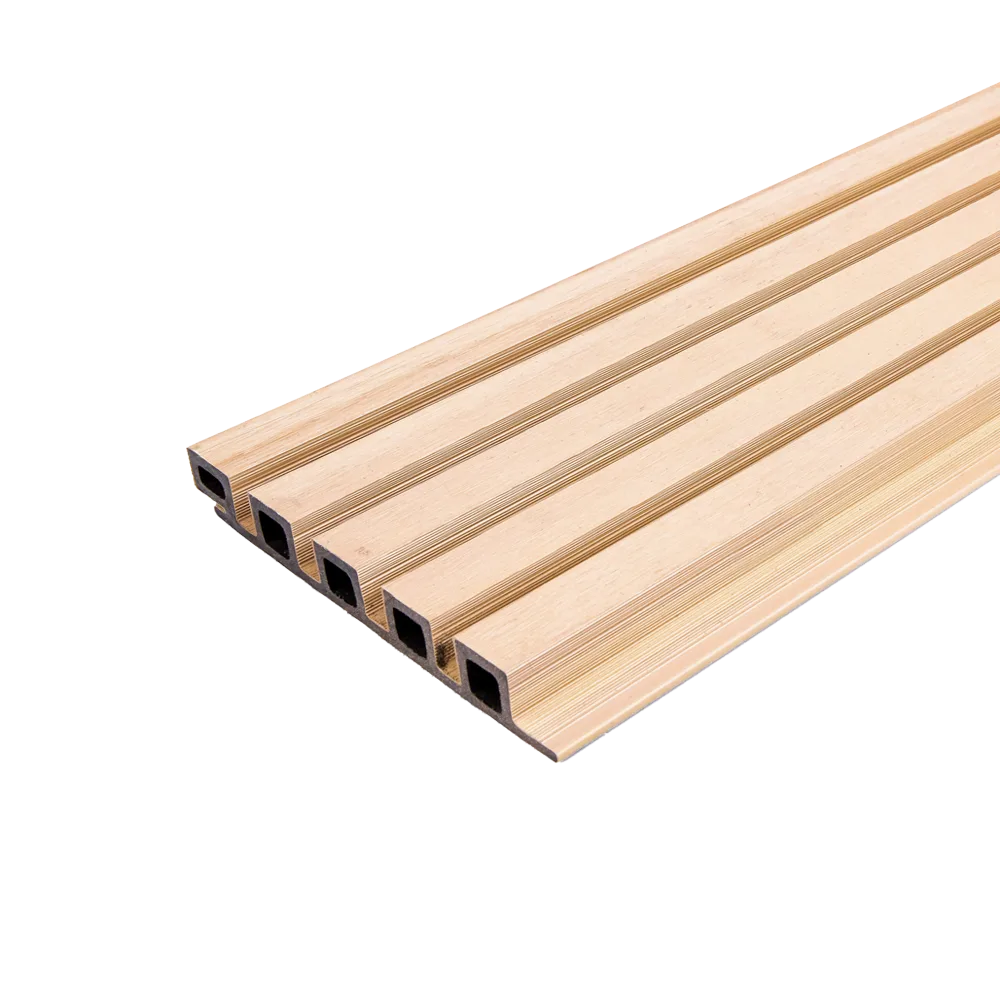

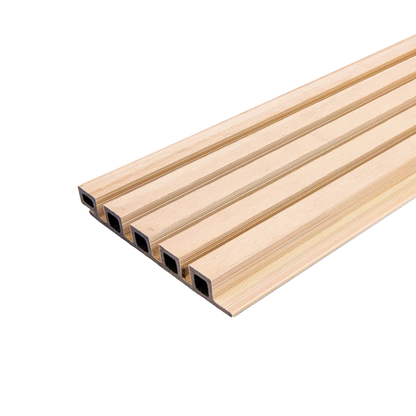

• Canadian Cedar

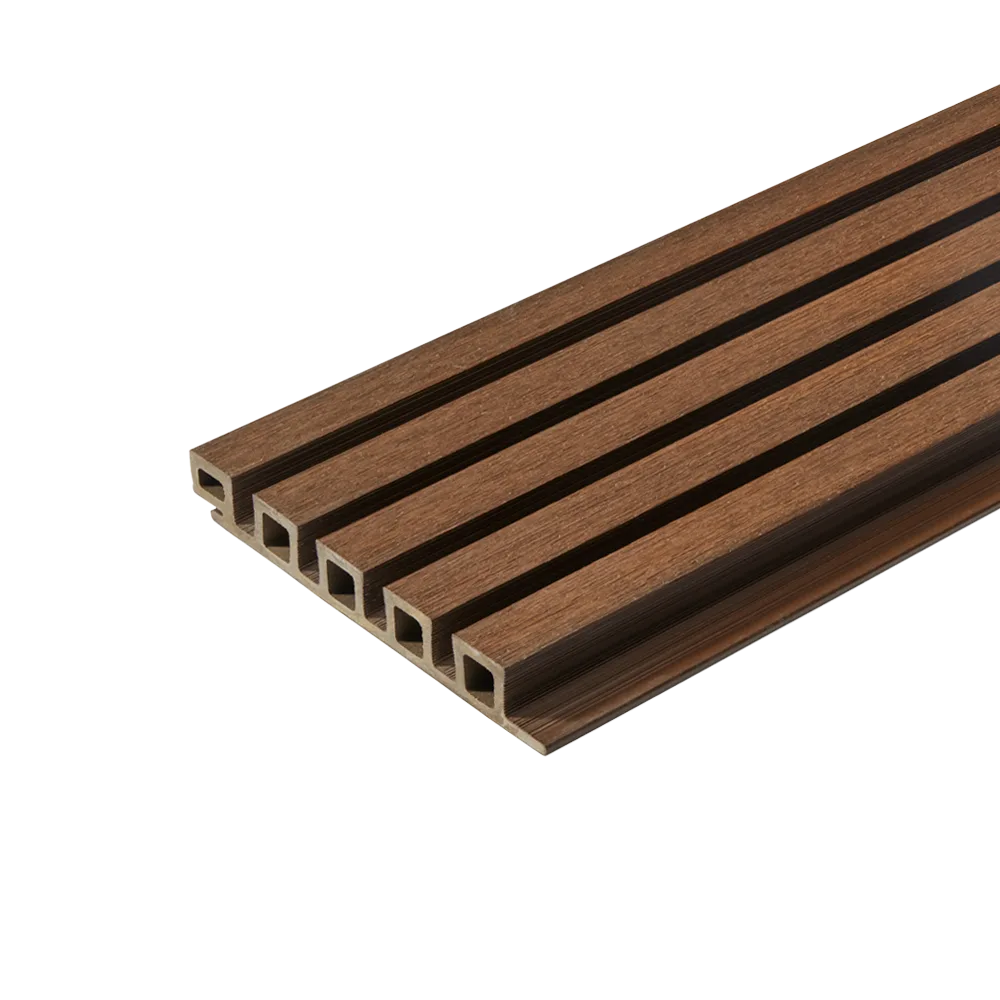

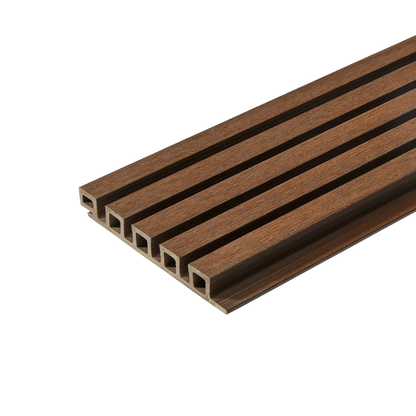

• IPE

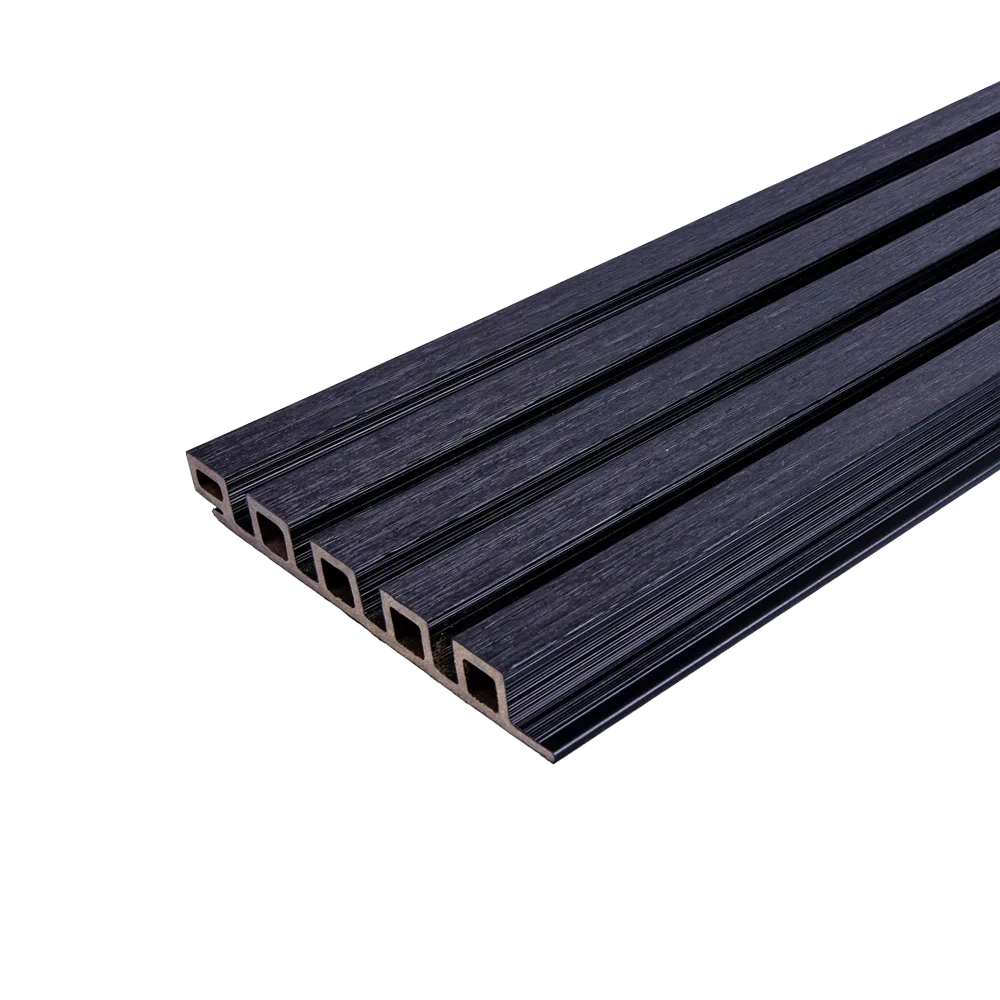

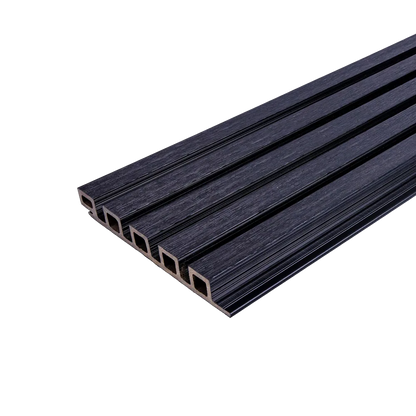

• Ebony

Resources:

⬇︎ NewTechWood Cladding Installation Guide ⬇︎ NewTechWood Cladding Trims
